Class 12PhysicsCurrent Electricity

Two parallel resistances 4 Ω and 8 Ω are connected with a known resistance of  6 Ω as shown in figure. Where is the balance point on the wire of the meter bridge?

Uploaded image

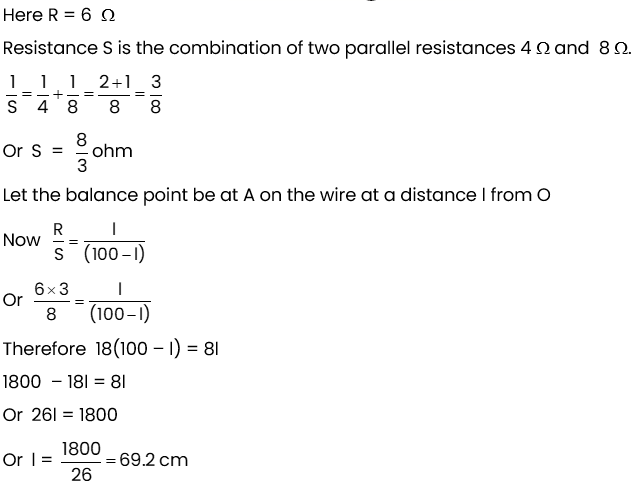

Verified Answer

Uploaded image
