In figure the values of capacitances are as follows:
C1 = C2 = C3 = C4 = 4μF, C5=5μF.
Calculate the equivalent capacitance between the points P and Q. If a battery of 10 volt is connected between these points, what will be the charge on each capacitor?

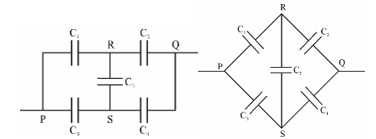

The given circuit can be redrawn as shown in figure.
