Draw the resonance structures for the following compounds. Show the electron shift using curved- arrow notation. .(a) C6H5NO2 (b) CH3CH = CHCHO(c) C6H5—CHO (d) CH3CH = C+H CH2

Verified Answer

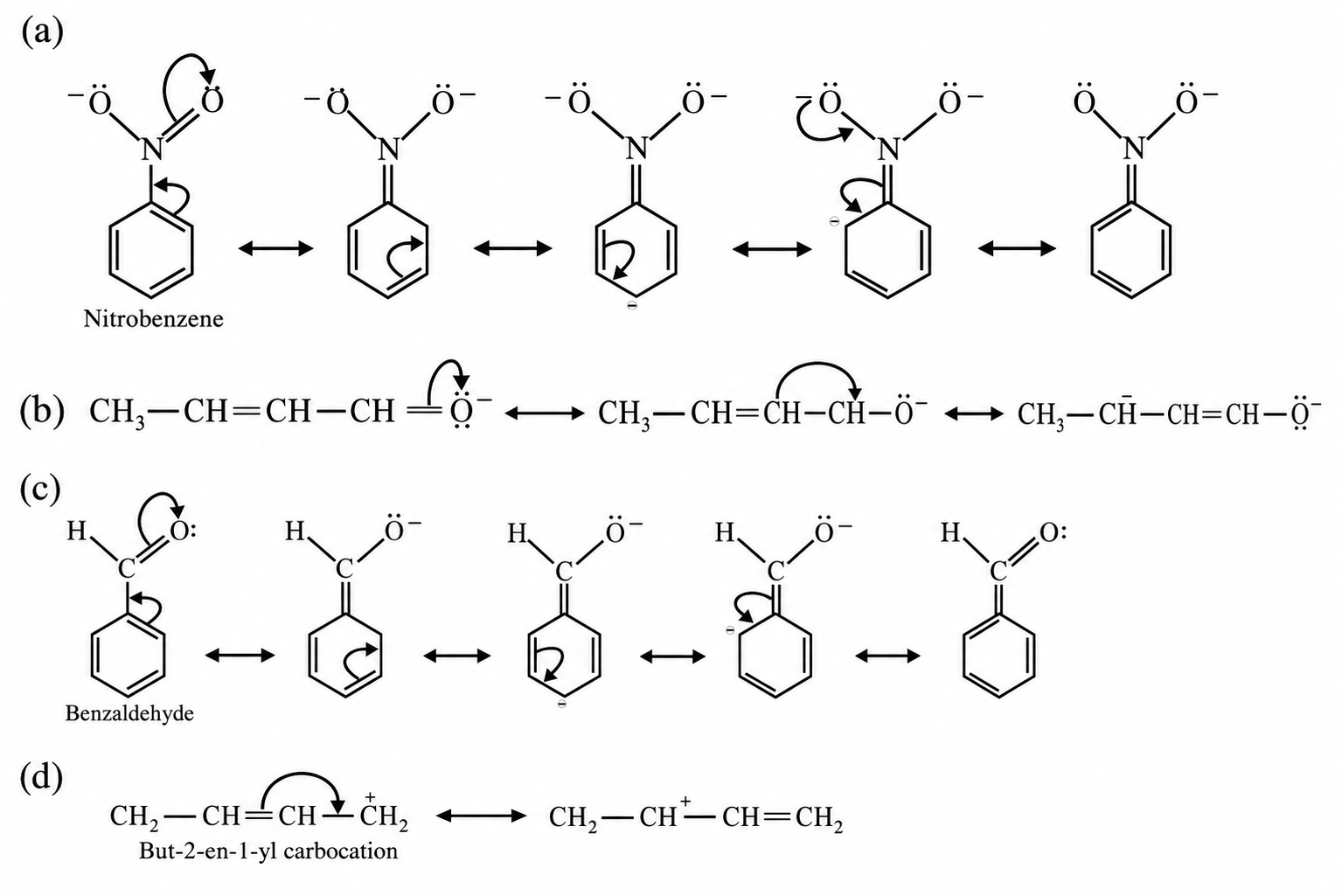

Draw the resonance structures for the following compounds. Show the electron shift using curved- arrow notation. .
(a) C₆H₅NO₂
(b) CH₃CH = CHCHO
(c) C₆H₅—CHO
(d) CH₃CH = C⁺H CH₂
