Question
Class 12PhysicsMagnetic Effects of Current

An infinitely long conductor as shown in figure; carrying a current I with a semicircular loop on X-Y plane and two straight parts, one parallel to X-axis and another coinciding with z-axis. What is the magnetic field induction at the centre C of the semi-circular loop.

Uploaded image

Verified Answer

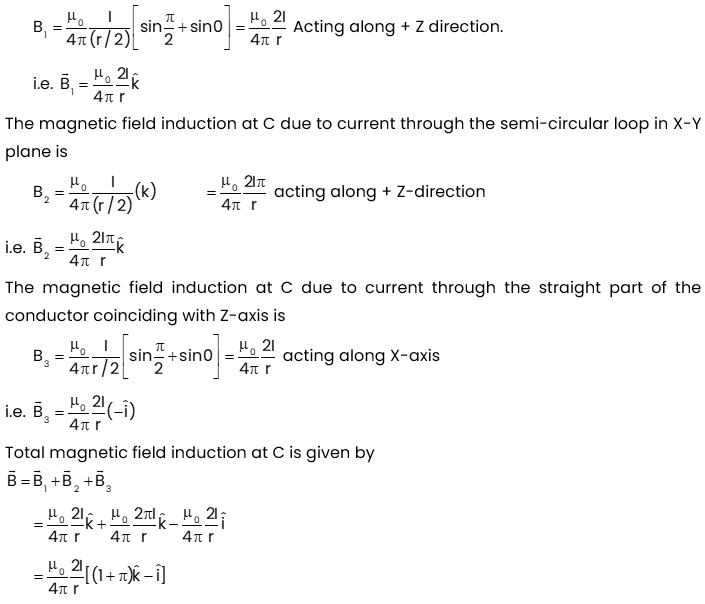

The magnetic field induction at C due to current through straight part of the conductor parallel to X-axis is

Uploaded image
